Horizon S Max
Product Description
- IMAX Enhanced & Dolby Vision Certified: With IMAX Enhanced, users can enjoy a true IMAX theater experience on a stunning big screen. Dolby Vision provides incredibly vivid effects, making your viewing experience even more immersive.
- 3100 ISO Lumens: Outstandingly high brightness, unaffected by ambient light. Enjoy brilliant 4K visuals with exceptional light and shadow detail.
- Equipped with a flexible built-in stand: HORIZON S Max eliminates the need for additional brackets or mounts. Easily adjust the projection angle to your liking, even when projecting onto the ceiling.
- ISA 5.0: Our advanced spatial perception algorithms now boast a substantial increase in image data training, delivering smarter features like wall color adaption and ultra-wide screen mode.
- More Comfortable Viewing Experience: SGS Low Blue Light Certification, Low Speckle A+ Certification, Low Color Breakup Ratio A+ Certification.
- Electric Sliding Cover: Soft texture with woolen fabric. Create the ideal ambiance, especially when using the device at home.

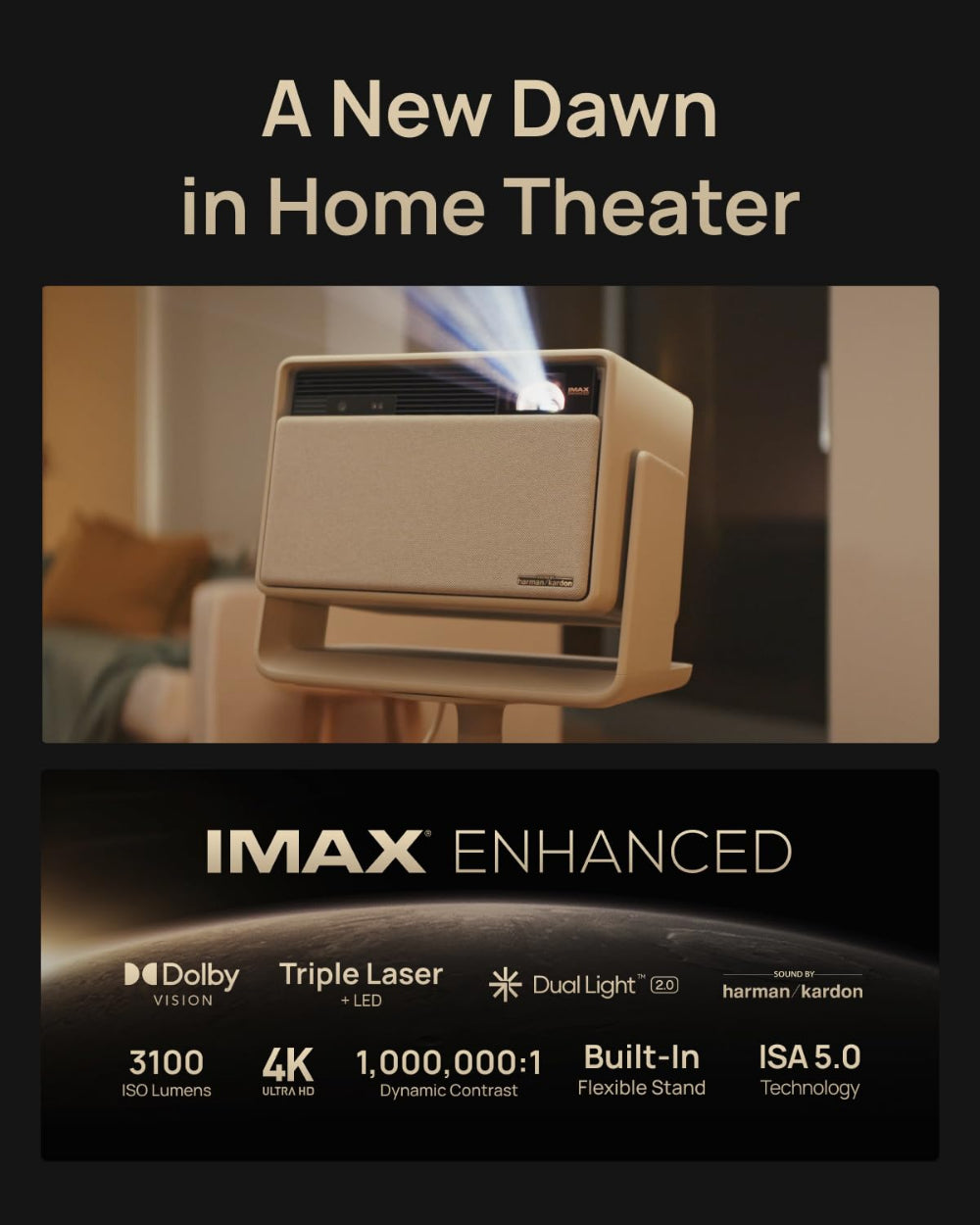

IMAX Enhanced & Dolby Vision Certified
With IMAX Enhanced, users can enjoy a true IMAX theater experience on a stunning big screen. Dolby Vision provides incredibly vivid effects, making your viewing experience even more immersive.
3100 ISO Lumens3Stunning Clarity on A Big Screen
Outstandingly high brightness, unaffected by ambient light. Enjoy brilliant 4K visuals with exceptional light and shadow detail.
Built-in Flexible Stand
Equipped with a flexible built-in stand, HORIZON S Max eliminates the need for additional brackets or mounts. Easily adjust the projection angle to your liking, even when projecting onto the ceiling.
Intelligent Screen Adaption (ISA) 5.0
Our advanced spatial perception algorithms now boast a substantial increase in image data training, delivering smarter features like wall color adaption and placing us nearly two years ahead of the industry.
Uninterrupted Auto Keystone Correction
Auto Focus

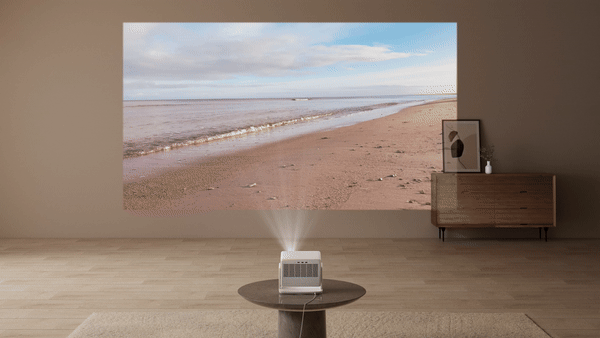

Intelligent Obstacle Avoidance

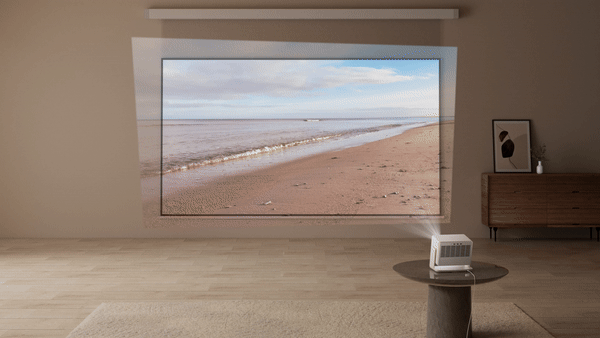

Intelligent Screen Alignment

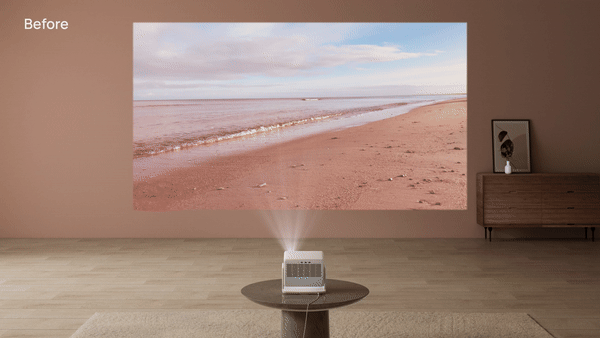

Wall Color Adaption
Intelligent Eye Protection
Specs
HORIZON S Max
Product Classification: Home Projector
Display Technique: DLP (0.47" DMD)
Light Source: Dual Light 2.0 (hybrid laser + LED)
Expected Lamp Life: 20,000 Hours
Standard Resolution: 3840 × 2160 (4K UHD)
Brightness: 3100 ISO Lumens
Dynamic Contrast Ratio: 1,000,000:1
Color Gamut: BT.2020 110%
Supported HDR Formats: HDR10, HLG, Dolby Vision, IMAX Enhanced
MEMC (Motion Compensation): Yes
3D Support: Yes (Full 3D)
Eye Protection: Yes (intelligent sensor)
Lens: High Light Transmission Coated Lens
Latency (Game Mode, VRR on, AK off):
• 1ms @ 1080p / 240Hz
• 2.2ms @ 1080p / 120Hz
• 3ms @ 4K / 60Hz
Auto Keystone Correction: ISA 5.0 Uninterrupted Auto Keystone
Auto Focus: ISA 5.0 Auto Focus (instant precision)
Intelligent Screen Alignment: Yes
Intelligent Obstacle Avoidance: Yes
Optical Zoom: Not specified (Digital Zoom available)
Digital Zoom: Yes
Throw Ratio: 1.2 : 1
Aspect Ratio: 16:9 / 4:3 (compatible)
Image Size (Diagonal): 40" – 200"
Projection Methods: Front, Rear, Front Ceiling, Rear Ceiling
CPU: Cortex-A55 (Quad-core)
GPU: Mali-G52
RAM: 2GB
Storage: 64GB eMMC
Operating System: Android TV™ 11.0
Fast Boot (STR): Yes (instant resume)
Mirroring & Casting: Google Cast, DLNA

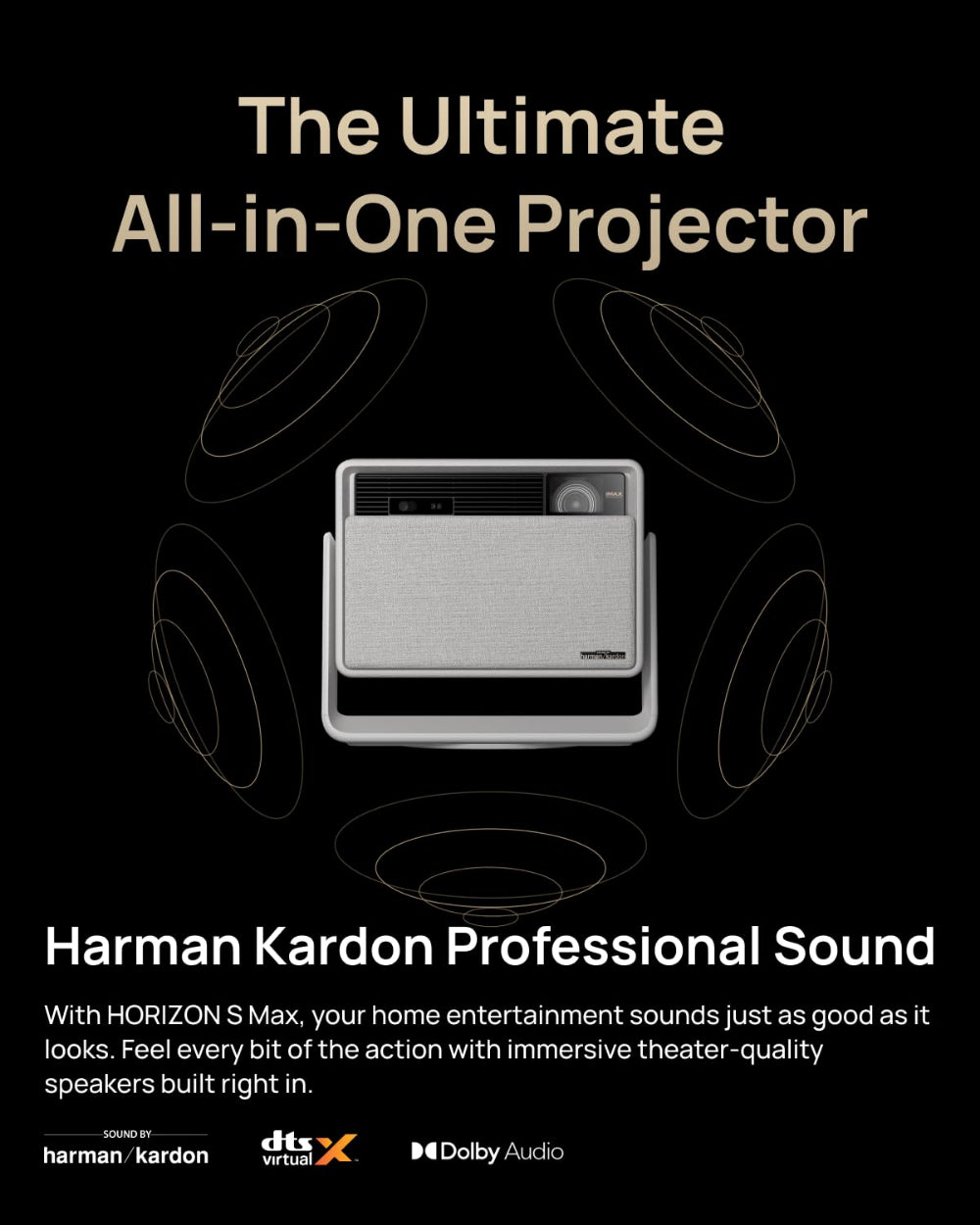

Speakers: 2 × 12W Harman/Kardon (custom tuned)
Dolby Audio: Yes
Dolby Digital (DD): Yes
Dolby Digital Plus (DD+): Yes
DTS Virtual:X: Yes (3D audio virtualization)
DTS-HD: Yes
Wi-Fi: WiFi 5 (Dual-band 2.4/5GHz, 802.11a/b/g/n/ac)
Bluetooth: 5.1
Input Ports:
• DC × 1 (power input)
• HDMI × 1 (supports eARC/ARC)
• USB × 2 (USB 2.0)
Output Ports:
• Optical (S/PDIF) × 1
• 3.5mm Audio Out × 1
Noise Level: ≤28 dB @ 1m (standard mode)
Power Dissipation: ≤300W (typical)
Power Supply: AC 100–240V, 50/60Hz
Standby Consumption: <0.5W
Product Size (H×W×D): 234 × 273 × 174 mm (9.2 × 10.7 × 6.85 in)
Product Weight: 4.81 kg (10.6 lbs)
Package Size (H×W×D): 245 × 393 × 310 mm (9.6 × 15.5 × 12.2 in)
Package Weight: 7.5 kg (16.5 lbs)

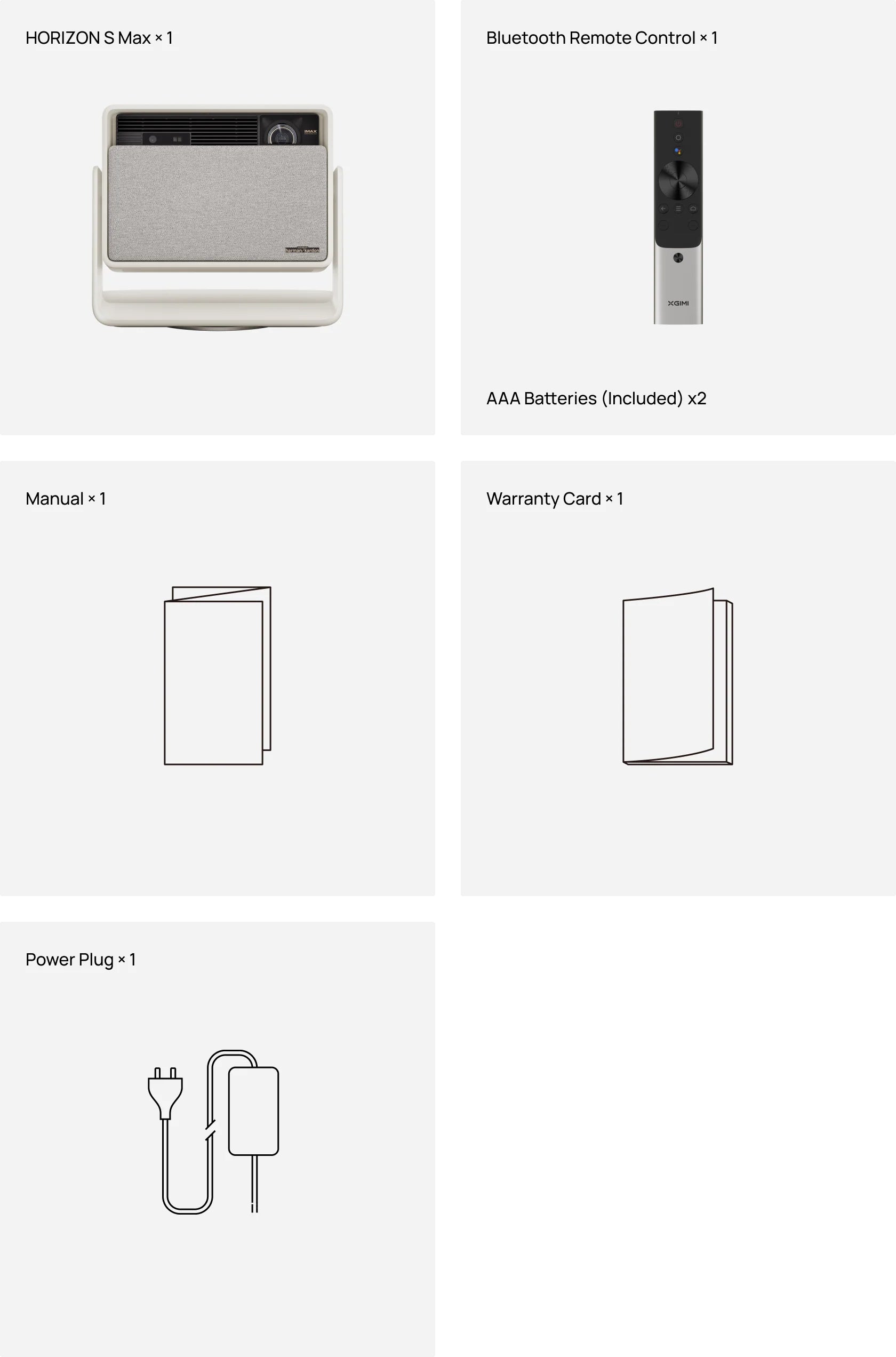

• Power Plug / AC Adapter × 1
• Backlight Bluetooth Remote Control × 1
• AAA Batteries × 2
• User Manual × 1
• Warranty Card × 1
