Horizon 20
Product Description

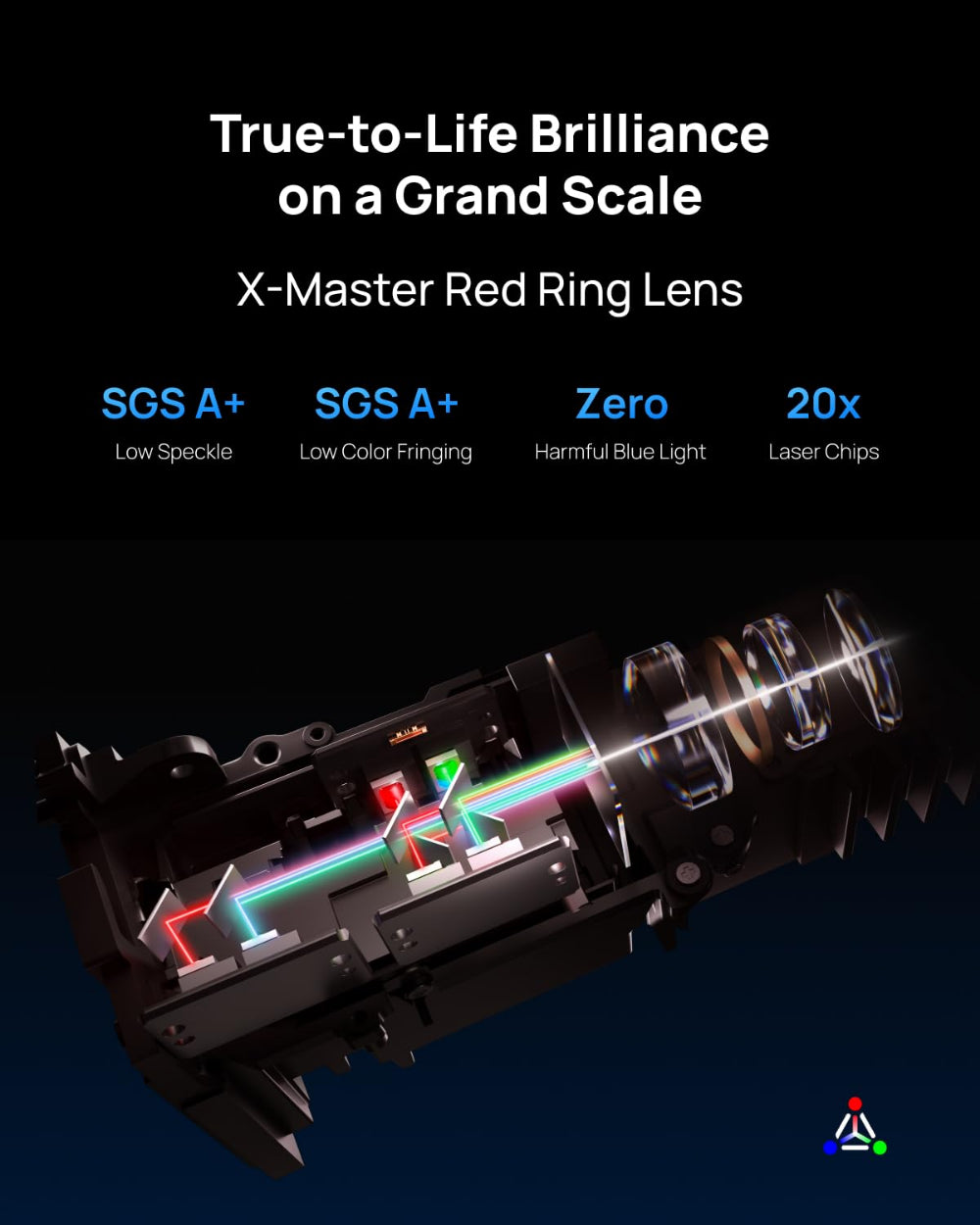

- Powered by RGB Triple Laser: The X-Master RGB triple laser engine delivers 3200 ISO lumens and a 20,000:1 contrast ratio for vivid, accurate colors and exceptional image depth—perfect for immersive viewing anytime.
- Cinematic Certified: IMAX Enhanced, Dolby Vision, HDR10+, and Filmmaker Mode combine to deliver stunning visuals and true-to-intent playback—bringing the theater home.
- All-in-One Simplicity: From powerful Harman Kardon speakers to built-in Google TV and an integrated stand, everything you need is already inside—no extra setup, no compromises.
- Lossless Optics: Flexible lens shift and optical zoom give you more freedom in setup—without sacrificing clarity. Enjoy crisp, distortion-free visuals at any size, from any angle.
-
Pro-Level Gaming Features: Play big with 200" visuals, 1ms response, 240Hz fluidity—plus VRR and ALLM for seamless sync and ultra-low latency.
Where Everyday Becomes Legendary
With IMAX Enhanced, users can enjoy a true IMAX theater experience on a stunning big screen. Dolby Vision provides incredibly vivid effects, making your viewing experience even more immersive.
Effortless Projection with ISA 5.0
Less setting up, more sitting back. XGIMI’s ISA 5.0 automatically adjusts focus and adapts to your wall for the perfect image — no settings, no fuss, just instant immersion.
Specs
HORIZON 20
Product Classification: Home Projector
Display Technique: DLP (0.47" DMD)
Light Source: RGB Triple Laser (vivid colors)
Standard Resolution: 3840 × 2160 (4K UHD)
Brightness: 3200 ISO Lumens
Contrast Ratio: 20,000:1 (DBLE On)
Color Gamut: BT.2020 110%
Supported Formats: HDR10+, Dolby Vision, IMAX Enhanced
MEMC (Motion Estimation): Yes
3D: Yes (Full 3D support)
Eye Protection: Yes (intelligent sensor)
Lens: High Light Transmission Coated Lens
Latency (Game Mode, VRR on, AK off):
• 1ms @ 1080p / 240Hz
• 2.2ms @ 1080p / 120Hz
• 3ms @ 4K / 60Hz
Auto Keystone Correction: Yes (full automatic)
Uninterrupted Auto Keystone: Yes (real-time continuous adjustment)
Auto Focus: Yes (instant precision)
Intelligent Screen Alignment: Yes
Intelligent Obstacle Avoidance: Yes

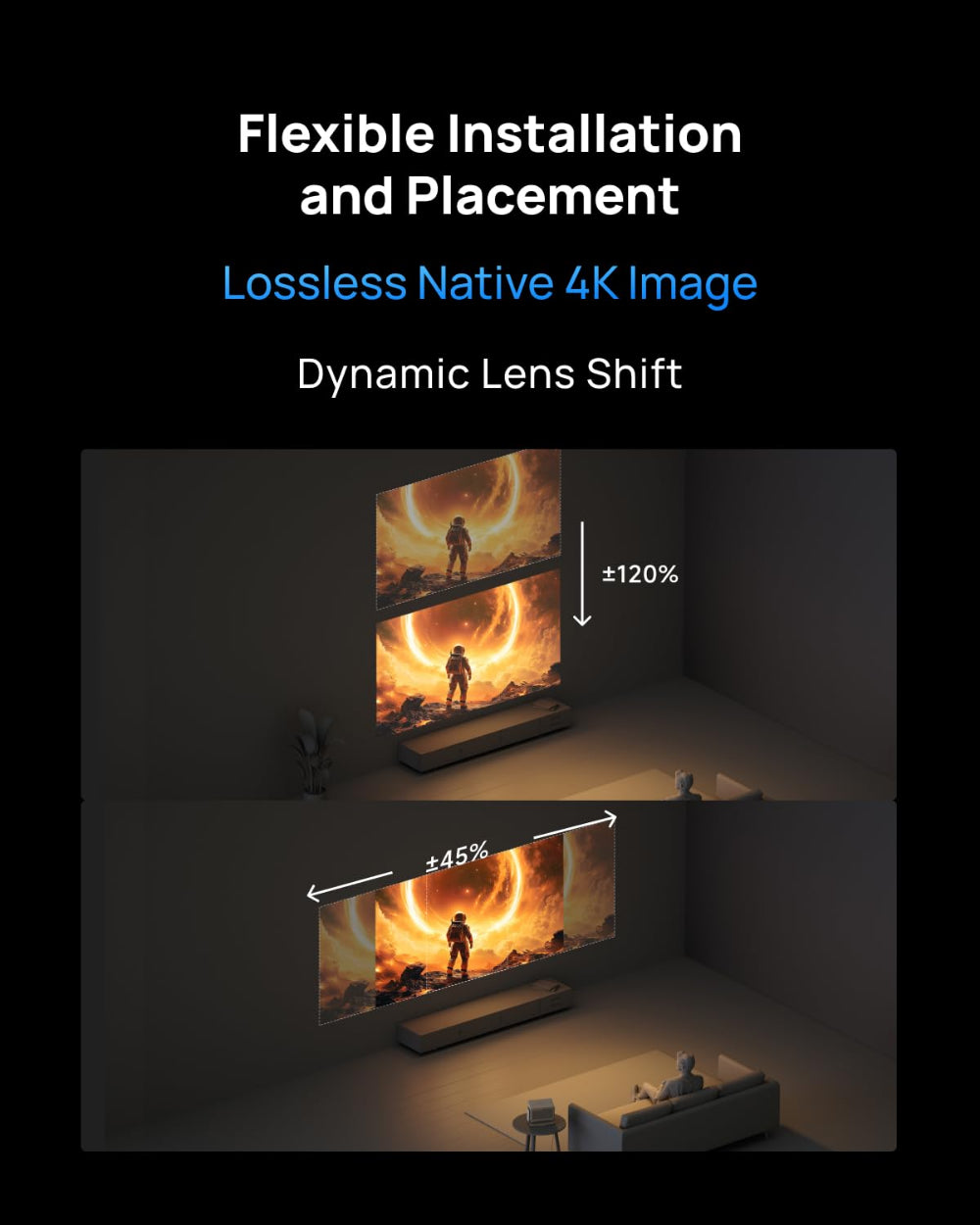

Lens Shift: Vertical ±120% / Horizontal ±45% (motorized)
Optical Zoom: Yes (1.2x – 1.5x throw ratio)
Digital Zoom: Yes
Throw Ratio: 1.2 – 1.5 : 1
Aspect Ratio: 16:9 (compatible 4:3)
Image Size (Diagonal): 40" – 300"
Projection Methods: Front, Rear, Front Ceiling, Rear Ceiling
CPU: MT9679 (Quad-core)
GPU: Mali-G52 (2EE)
RAM: 4GB DDR4
Storage: 128GB eMMC

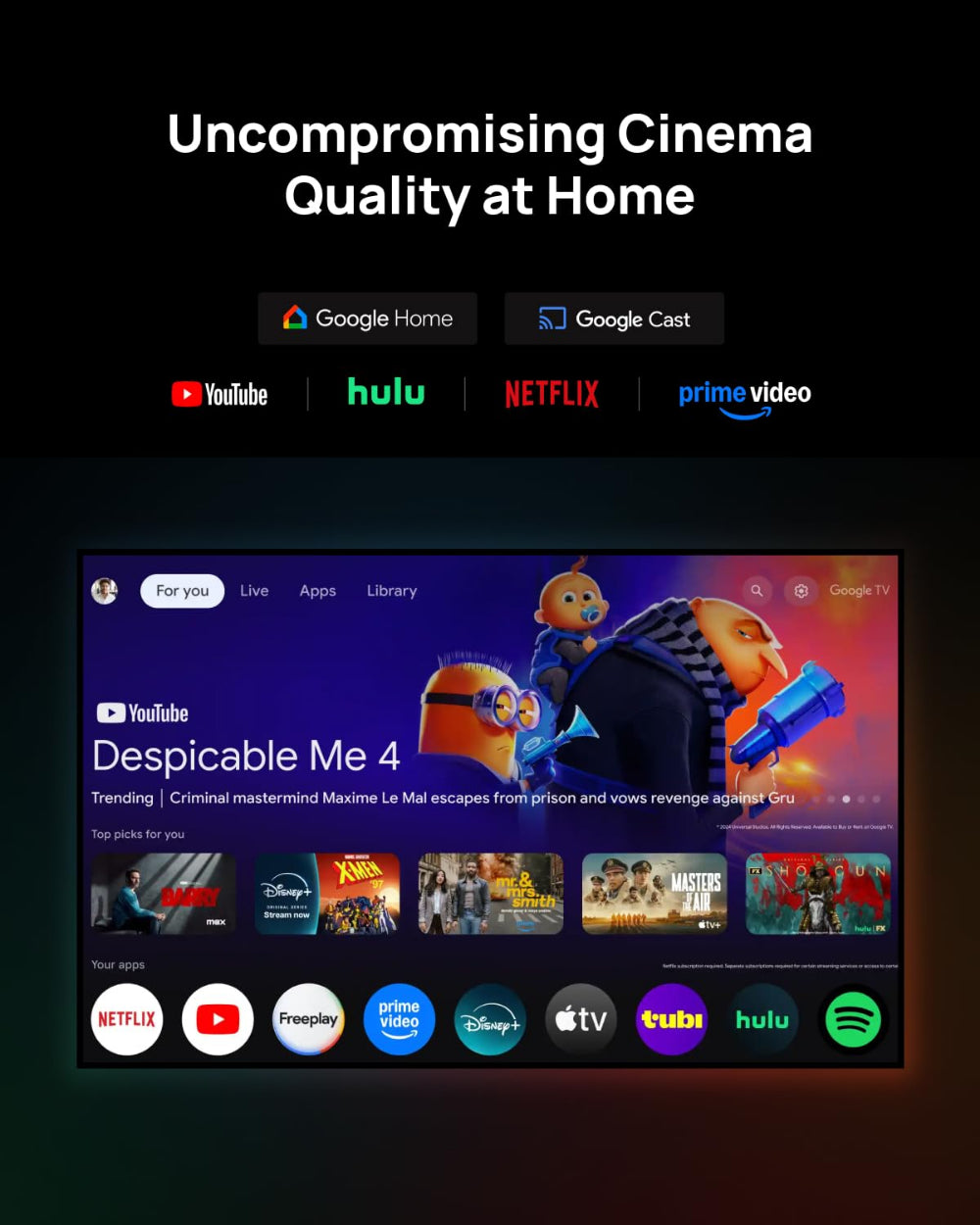

Operating System: Google TV (Android TV 12+)
Fast Boot (STR): Yes (instant wake from suspend)
Mirroring & Casting: Google Cast, DLNA, AirPlay compatible
Speakers: 2 × 12W Harman/Kardon (custom tuned)
Dolby Audio: Yes
Dolby Digital (DD): Yes
Dolby Digital Plus (DD+): Yes
DTS Virtual:X: Yes (3D audio virtualization)
DTS-HD: Yes (lossless surround)
Wi-Fi: WiFi 6 (Dual-band 2.4/5GHz, 802.11ax)
Bluetooth: 5.2 / BLE (low energy)
Input Ports:
• DC × 1 (power input)
• HDMI × 2 (HDMI1 supports eARC/ARC)
• USB 3.0 × 1 | USB 2.0 × 1
Output Ports:
• Optical (S/PDIF) × 1
• 3.5mm Audio Out × 1
Noise Level: ≤28 dB @ 1m (cinema mode)
Power Dissipation: ≤180W (typical)
Power Supply: AC 100–240V, 50/60Hz
Standby Consumption: <0.5W
Product Size (H×W×D): 249 × 298 × 190 mm (9.8 × 11.7 × 7.5 in)
Product Weight: 4.8 kg (10.6 lbs)
Package Size (H×W×D): 424 × 369 × 251 mm (16.7 × 14.5 × 9.9 in)
Package Weight: 6.5 kg (14.3 lbs)

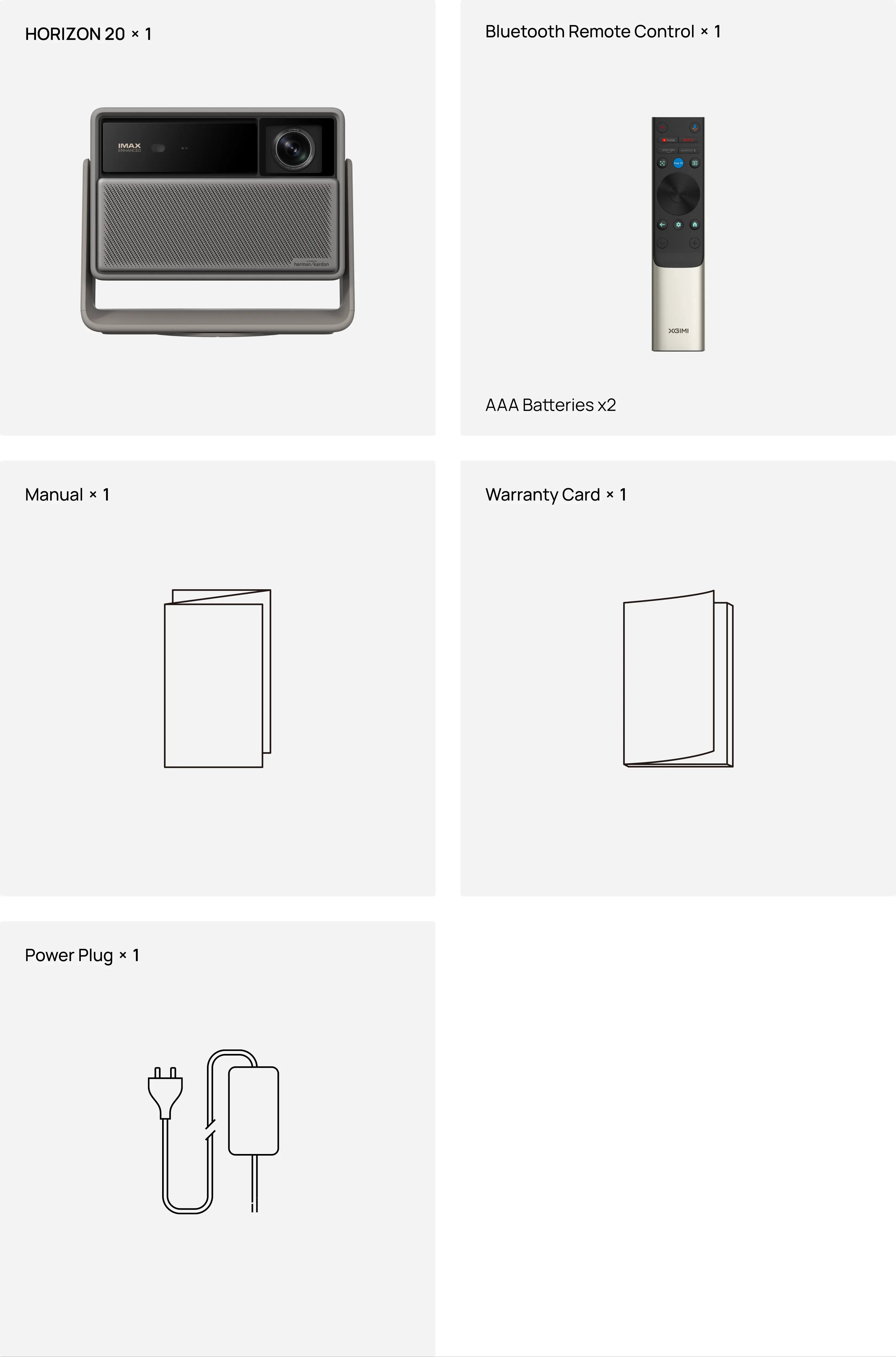

• Power Plug / AC Adapter × 1
• Backlight Bluetooth Remote Control × 1
• AAA Batteries × 2
• User Manual × 1
• Warranty Card × 1
