Product Classification: Home Projector

Display Technique: DLP (0.47” DMD)

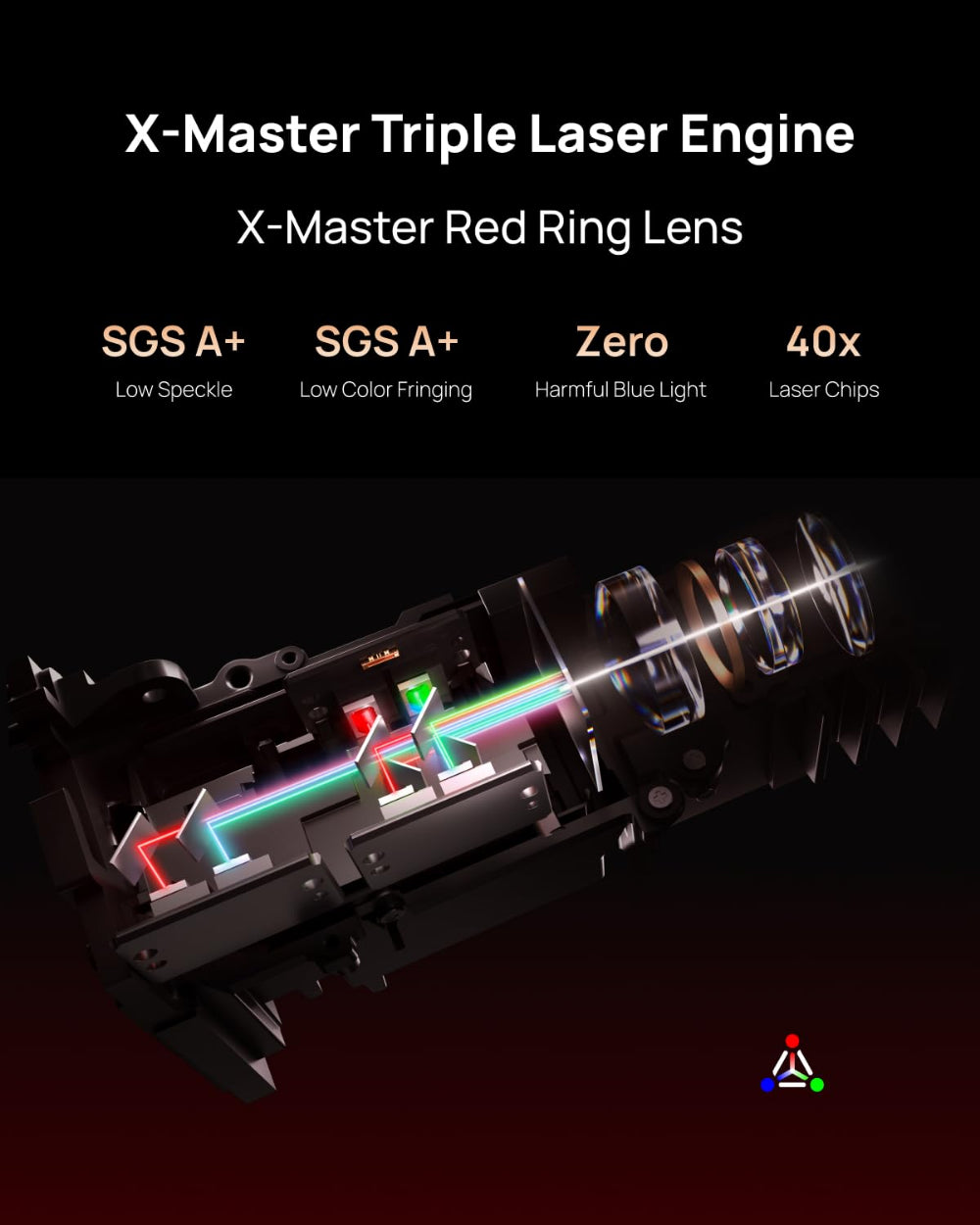

Light Source: RGB Triple Laser (high brightness, wide gamut)

Resolution: 3840 × 2160 (4K UHD)

Brightness: 5700 ISO Lumens

Contrast Ratio: 20,000:1 (dynamic black enhancement)

Color Gamut: BT.2020 110%

HDR Support: HDR10+, Dolby Vision, IMAX Enhanced

MEMC: Yes (motion smoothing)

3D: Yes (Full 3D)

Eye Protection: Yes (intelligent sensor)

Latency (Game Mode, VRR on): 1ms–3ms (1ms @1080p/240Hz, 3ms @4K/60Hz)

Auto Focus: Yes (instant, precision)

Auto Keystone Correction: Yes (full automatic)

Uninterrupted Auto Keystone: Yes (real-time)

Intelligent Obstacle Avoidance: Yes

Intelligent Screen Alignment: Yes

Lens Shift: V±120% / H±45% (motorized)

Optical Zoom: Yes (1.2x – 1.5x throw ratio)

Digital Zoom: Yes

Throw Ratio: 1.2 – 1.5 : 1

Screen Size: 40" – 300" diagonal

Aspect Ratio: 16:9 (compatible 4:3)

Projection Methods: Front, Rear, Front Ceiling, Rear Ceiling

CPU: MT9679 (Quad-core)

GPU: Mali-G52 (2EE)

RAM: 4GB DDR4

Storage: 128GB eMMC

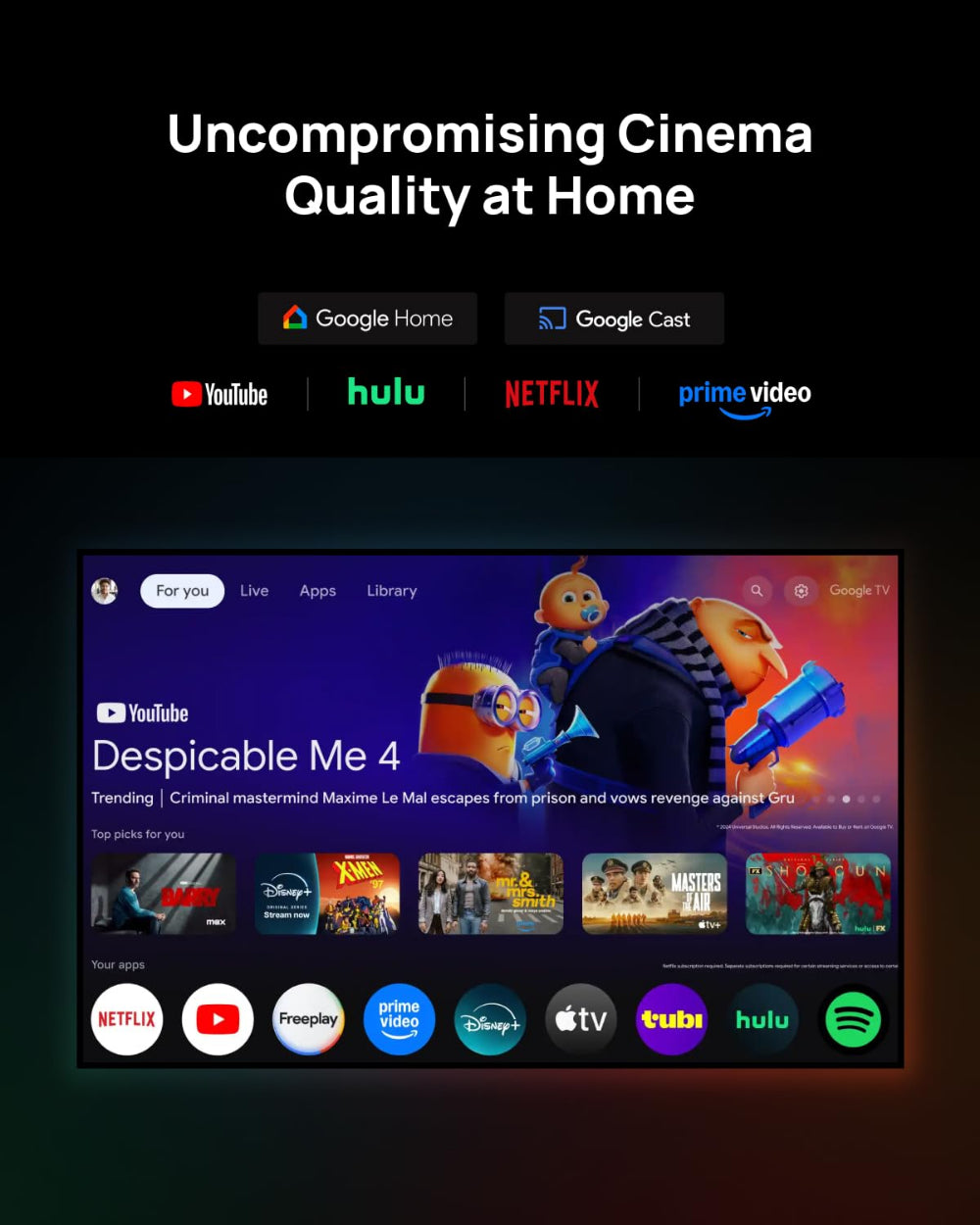

Operating System: Google TV (Android TV 12+)

Fast Boot (STR): Yes (instant resume)

Wireless Casting: Google Cast, DLNA, AirPlay compatible

Speakers: 2 × 12W Harman/Kardon (custom tuned)

Dolby Audio: Yes

Dolby Digital (DD): Yes

Dolby Digital Plus (DD+): Yes

DTS Virtual:X: Yes (virtual 3D sound)

DTS-HD: Yes

Wi-Fi: WiFi 6 (Dual-band 2.4/5GHz, 802.11ax)

Bluetooth: 5.2 / BLE

Input Ports:
 • DC × 1
 • HDMI × 2 (HDMI1 supports eARC/ARC)
 • USB 3.0 × 1, USB 2.0 × 1

Output Ports:
 • Optical (S/PDIF) × 1
 • 3.5mm Audio Out × 1

Noise Level: ≤28 dB (standard mode)

Power Consumption: ≤180W

Voltage: AC 100–240V, 50/60Hz

Standby Power: <0.5W

Product Size (H×W×D): 249 × 298 × 190 mm (9.8 × 11.7 × 7.5 in)

Product Weight: 4.8 kg (10.6 lbs)

Package Size (H×W×D): 424 × 369 × 251 mm (16.7 × 14.5 × 9.9 in)

Package Weight: 6.5 kg (14.3 lbs)

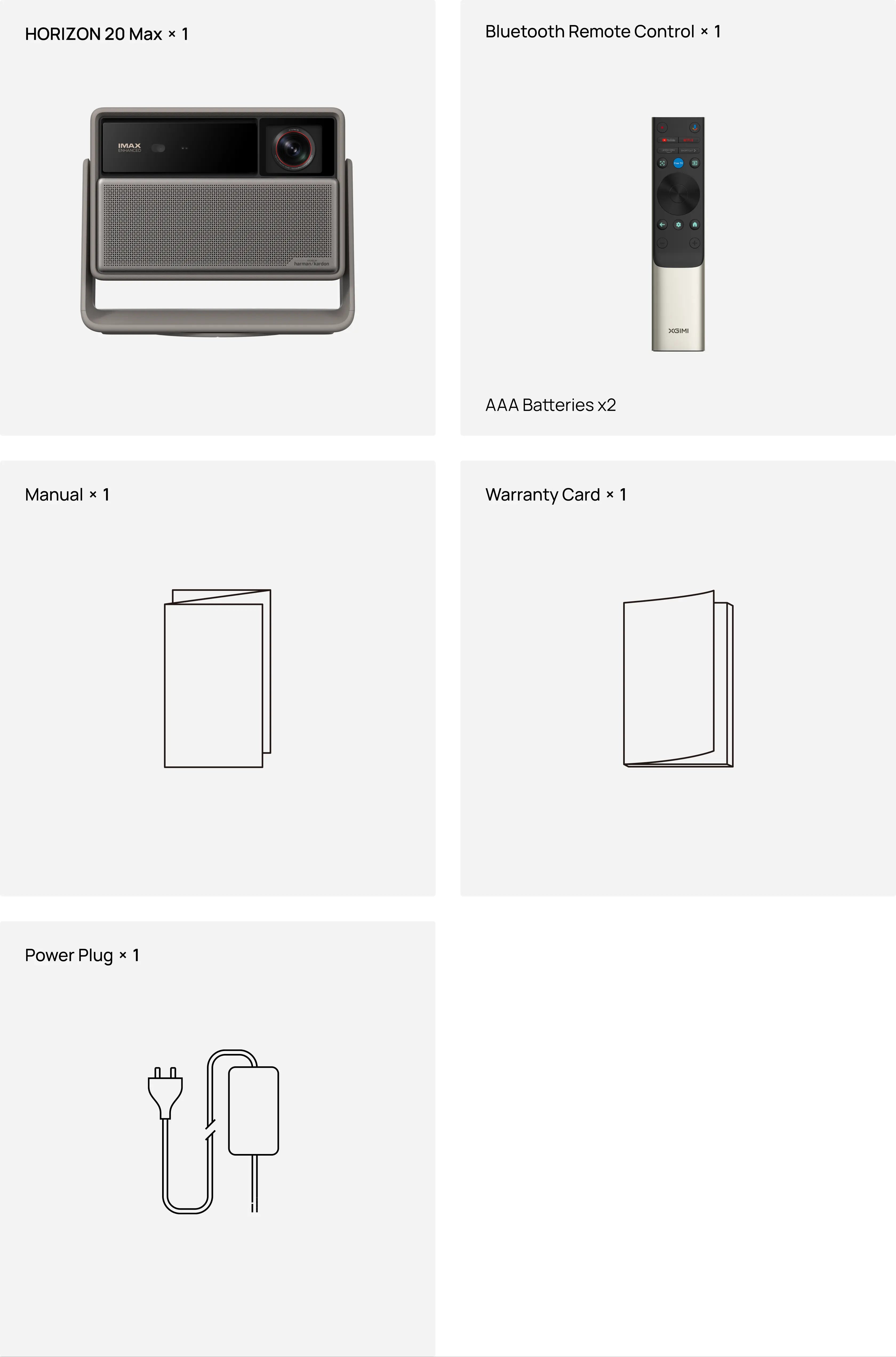

• Power Plug / AC Adapter × 1

• Backlight Bluetooth Remote Control × 1

• AAA Batteries × 2

• User Manual × 1

• Warranty Card × 1
